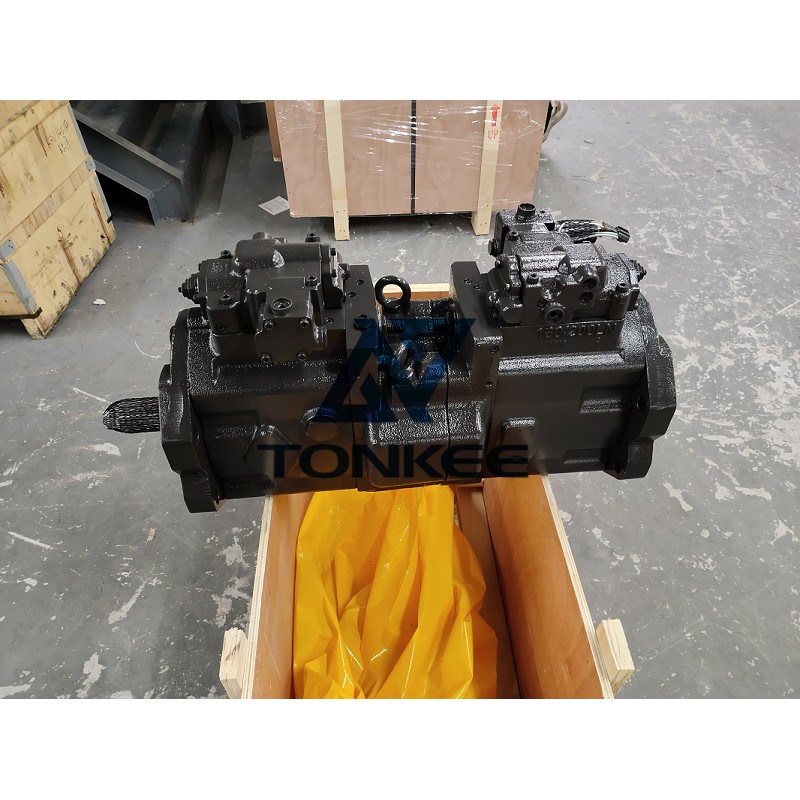

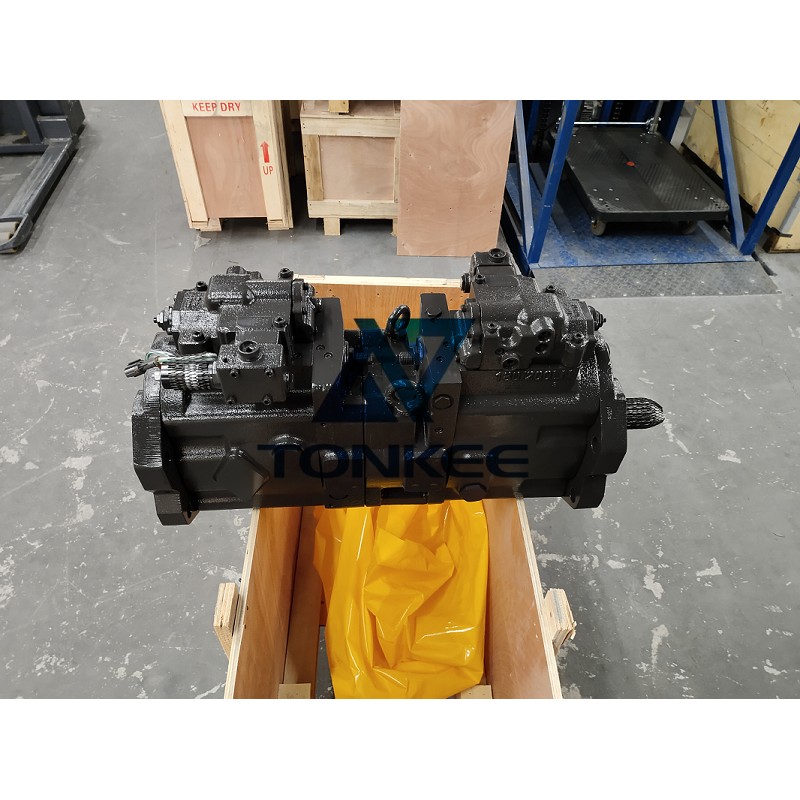

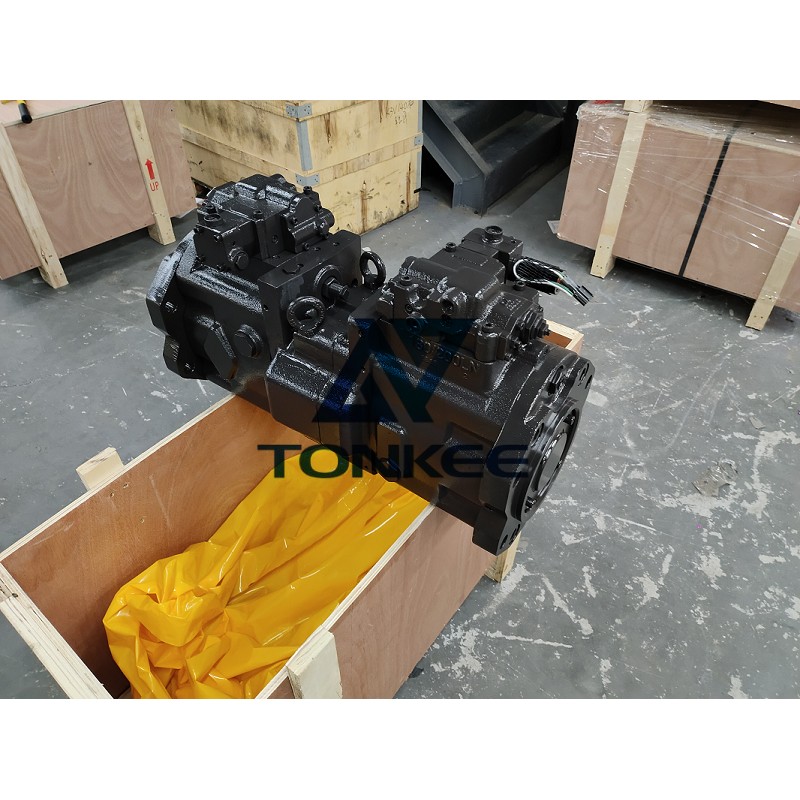

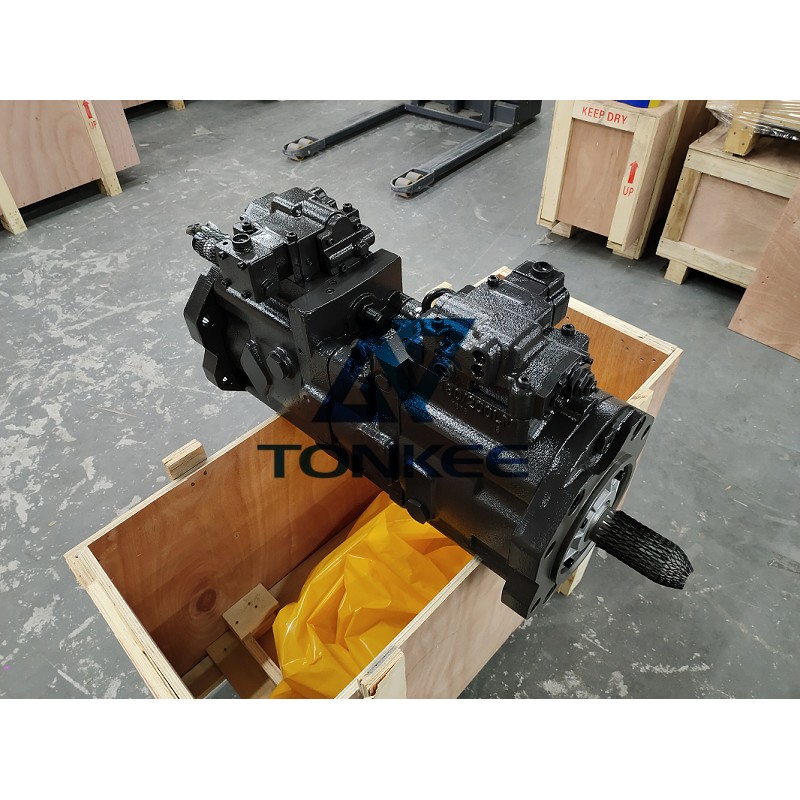

Pump Type: The K5V200DTH-9NOB is a variable displacement axial piston pump.
It uses a swash plate design to vary the displacement of the pistons and control the flow of hydraulic fluid.
Displacement Range: The pump has a displacement range of 200 cm³/rev (12.2 in³/rev). This displacement determines the volume of fluid delivered by the pump per revolution.
Pressure Rating: The K5V200DTH-9NOB pump is designed to operate at high pressure levels. It has a maximum rated pressure of 350 bar (5075 psi). This high-pressure capability makes it suitable for applications requiring substantial force or heavy loads.
Flow Rate: The pump can deliver a maximum flow rate of 208 liters per minute (55 gallons per minute). The flow rate depends on the pump's displacement and operating speed, and it determines the speed at which hydraulic actuators or motors can move.
Efficiency: The K5V200DTH-9NOB pump is engineered for high efficiency. Its advanced design minimizes internal leakage and improves overall efficiency, resulting in reduced energy consumption and lower operating costs.
Control Options: The pump offers various control options to meet different application requirements. It can be controlled through electrical signals (proportional or on/off control) or mechanical control (hydraulic or manual control).
Mounting Options: The K5V200DTH-9NOB pump supports different mounting configurations, including flange mounting and foot mounting. This flexibility allows for easy integration into different hydraulic systems.
Operating Temperature Range: The pump can operate within a temperature range of -20°C to 80°C (-4°F to 176°F). This wide temperature range ensures reliable performance even in harsh environmental conditions.
Fluid Compatibility: The K5V200DTH-9NOB pump is compatible with various hydraulic fluids, including mineral oils, synthetic oils, and environmentally friendly fluids. It is important to use the recommended fluid to ensure optimal pump performance and longevity.
Durability: The pump is built to withstand demanding operating conditions.
It features robust construction, high-quality materials, and precise manufacturing techniques, ensuring long service life and minimal maintenance requirements.
Noise Level: The K5V200DTH-9NOB pump incorporates noise reduction measures to minimize operational noise. This feature is crucial for applications where noise reduction is a priority, such as in urban environments or noise-sensitive industries.
Safety Features: The pump includes safety features like pressure relief valves and anti-cavitation valves to protect against excessive pressure and prevent damage to the pump and the hydraulic system.
