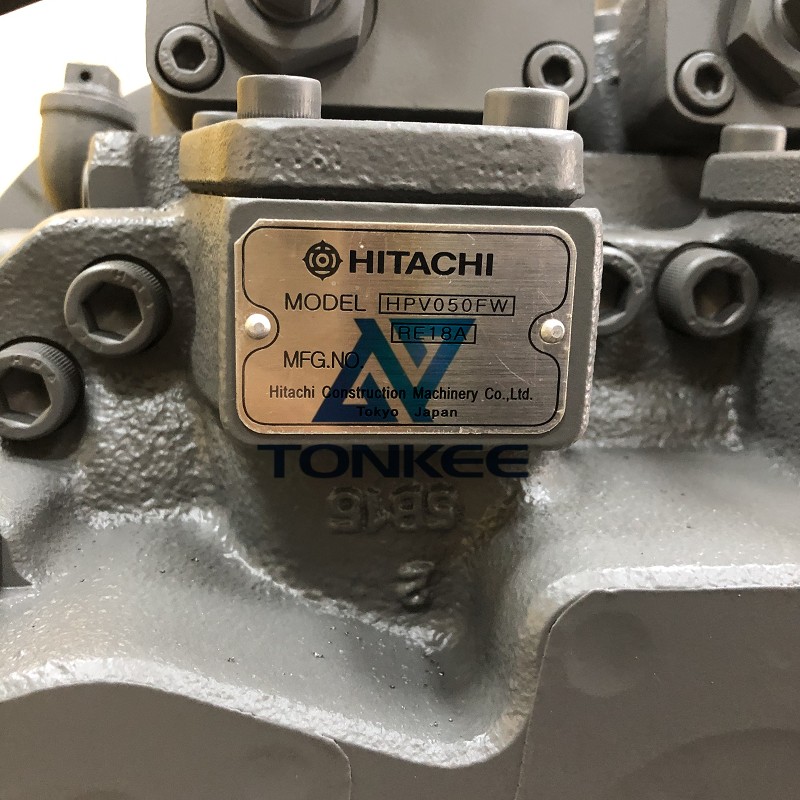

HPV050FW Hydraulic Pump:
Type: Axial piston pump
Displacement: 49.2 cm3/rev
Maximum operating pressure: 35 MPa
Maximum speed: 2,300 rpm
Weight: 36 kg
Mounting: SAE 2 bolt flange
RE18A Control Valve:
Type: Main control valve
Max. operating pressure: 34.3 MPa
Max. flow rate: 280 L/min
Weight: 78 kg
EX100-5 Excavator:
Operating weight: 10,700 kg
Engine: Hino J05E-TI, 4-cycle water-cooled direct injection turbocharged diesel engine
Power output: 85 kW (114 hp) @ 2,000 rpm
Bucket capacity: 0.28 - 0.89 m3
Maximum digging depth: 6,590 mm
Maximum dumping height: 7,300 mm
Swing speed: 10.5 rpm
Travel speed: 3.1 km/h
EX120-5 Excavator:
Operating weight: 12,500 kg
Engine: Isuzu 4BG1T, 4-cylinder turbocharged diesel engine
Power output: 65 kW (87 hp) @ 2,200 rpm
Bucket capacity: 0.31 - 0.89 m3
Maximum digging depth: 6,850 mm
Maximum dumping height: 7,660 mm
Swing speed: 11 rpm
Travel speed: 3.3 km/h
EX135UR Excavator:
Operating weight: 14,000 kg
Engine: Isuzu 4BG1T, 4-cylinder turbocharged diesel engine
Power output: 70 kW (94 hp) @ 2,200 rpm
Bucket capacity: 0.31 - 0.89 m3
Maximum digging depth: 6,990 mm
Maximum dumping height: 7,770 mm
Swing speed: 11 rpm
Travel speed: 3.1 km/h
