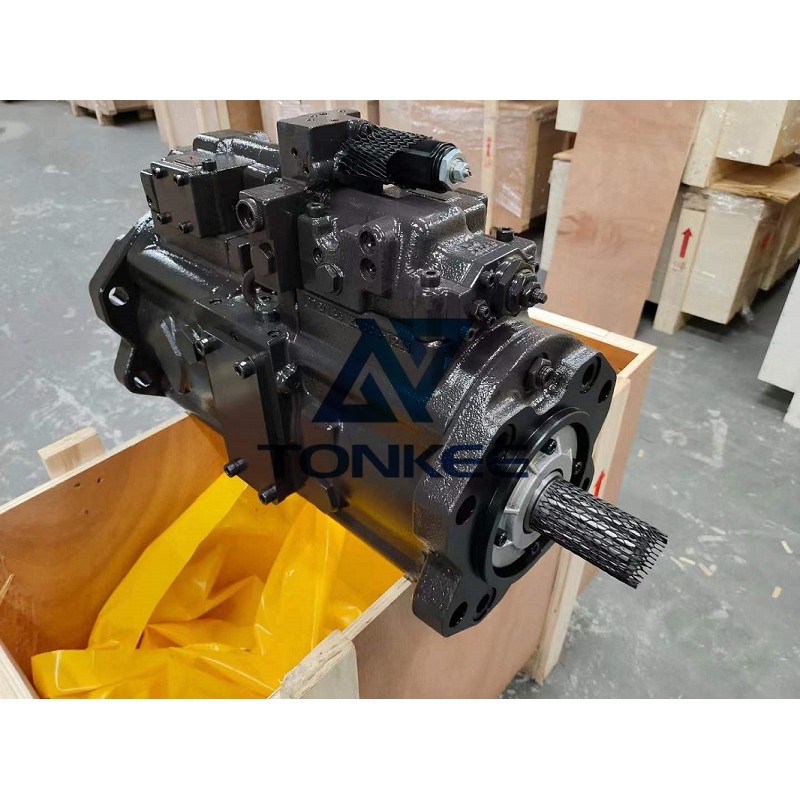

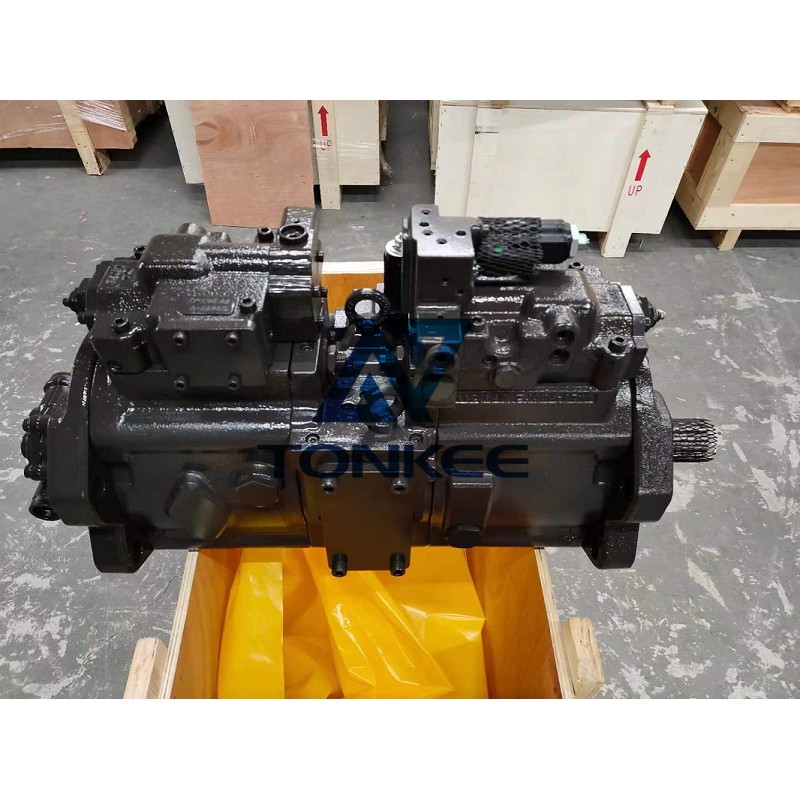

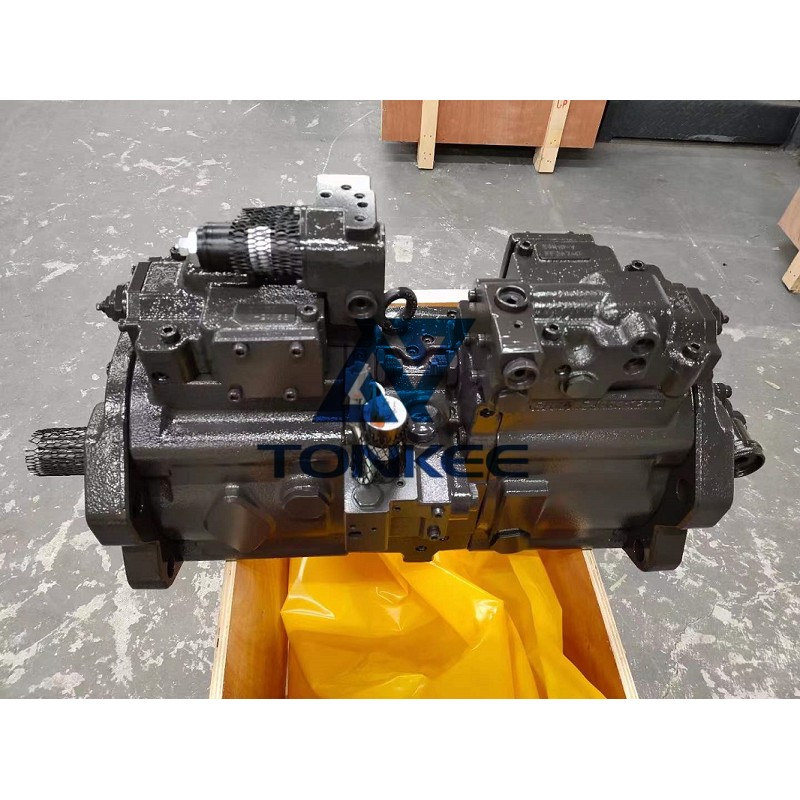

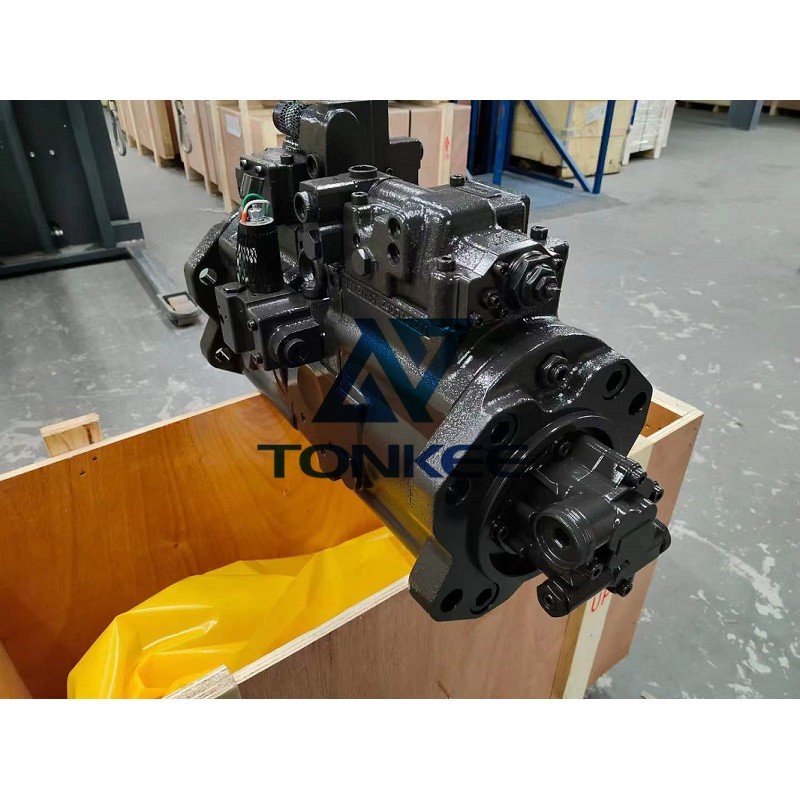

The K5V140DTP-9Y15 pump belongs to the K5V series, which is known for its high performance, durability, and versatility.
It is a variable displacement axial piston pump, meaning that it can vary the output flow rate and pressure according to the requirements of the system it is connected to. This feature allows for precise control and efficient power delivery, resulting in enhanced overall system performance.
The pump has a maximum displacement of 140 cm³/rev, indicating the volume of fluid it can deliver per revolution. This displacement capacity ensures that the pump can handle a wide range of hydraulic systems and applications, providing the necessary power for demanding tasks.
The K5V140DTP-9Y15 pump operates at a maximum continuous pressure of 35 MPa (350 bar) and has a peak pressure rating of 40 MPa (400 bar). These pressure levels make it suitable for heavy-duty applications that require high-pressure hydraulic systems, such as large construction machinery or hydraulic presses. The pump's robust construction and high-pressure capabilities ensure reliable performance and long service life even under demanding operating conditions.
To ensure smooth and efficient operation, the K5V140DTP-9Y15 pump incorporates advanced features such as a pressure compensator and a torque limiter. The pressure compensator adjusts the pump's displacement based on the system pressure, optimizing energy efficiency and preventing excessive pressure build-up. The torque limiter protects the pump from overload situations by limiting the torque transmitted to the drive shaft, enhancing the pump's durability and reliability.
The pump is designed for direct drive mounting, allowing for easy installation and integration into various hydraulic systems.
It features a through-shaft design, enabling multiple pumps to be connected in series or parallel configurations for increased flow capacity or redundancy.
In terms of fluid compatibility, the K5V140DTP-9Y15 pump is compatible with a wide range of hydraulic fluids, including mineral oils, synthetic oils, and biodegradable fluids. This versatility allows for flexibility in choosing the appropriate hydraulic fluid based on the application requirements and environmental considerations.
Maintenance and serviceability are important aspects of any hydraulic system, and the K5V140DTP-9Y15 pump is designed with these factors in mind. It incorporates replaceable cartridge-type components, which facilitate easy maintenance and reduce downtime. The pump's modular design ensures that individual components can be serviced or replaced without the need for extensive disassembly, minimizing maintenance costs and time.
