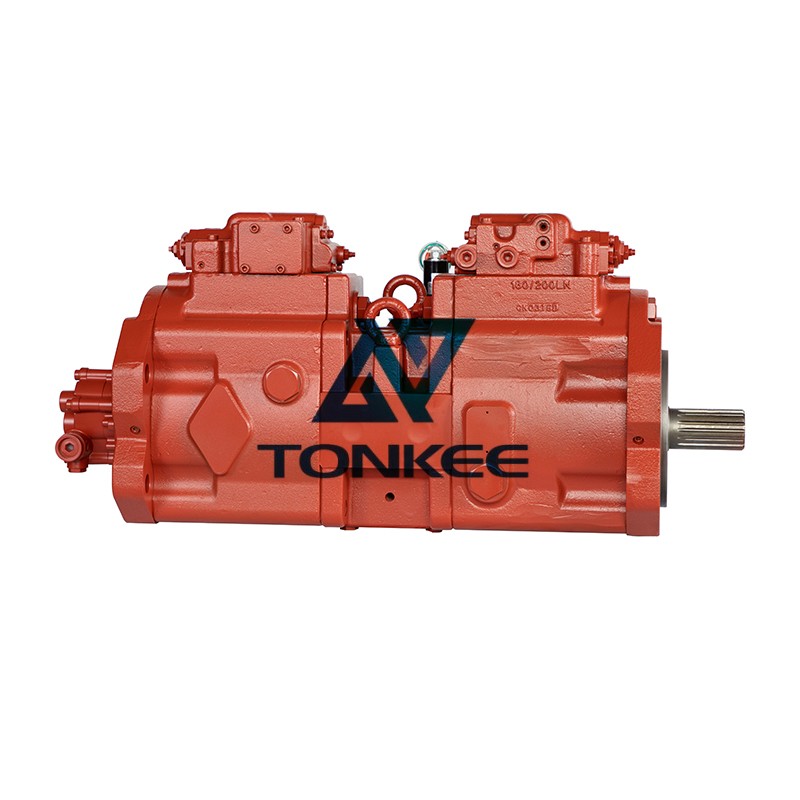

OEM R320-3 K3V180DT-9N69 Hydraulic pump

R320-3 K3V180DT-9N69 Hydraulic pump
Shaft seal type: Double lip seal
Suction port: M60 x 2
Discharge port: M42 x 2
Shaft diameter: 85 mm

Get a Quote -

DESCRIPTION

Type: Variable displacement axial piston pump
Maximum displacement: 180 cc/rev
Maximum pressure: 35 MPa (350 bar)
Rated speed: 2,000 rpm
Weight: 177 kg
Control type: Hydraulic servo control
Direction of rotation: Clockwise (viewed from the shaft end)
Shaft seal type: Double lip seal
Suction port: M60 x 2
Discharge port: M42 x 2
Shaft diameter: 85 mm
